B1 20.000 L Auger wagon for seeds and fertilizers
All stainless steel housing
Surface finish
Long life recyclable material
Hygienic material
Inert material
Mechanical resistance and ductility
Resistance to corrosion and oxidation
DE ACERO INOXIDABLE AISI 304 L CON CINTA TRANSPORTADORA
STAINLESS STEEL AISI 304 L
Developed for loading/unloading and transportation of seeds and fertilizers
Dual axle
Capacity: 20.000 liters
Diameter of the Auger tube: 220 mm
High flotation tyres (600/50 – 22.5) or duals
Inner compartment for seeds and fertilizers loading
Suspension system with leaf springs and tensors for a better trafficability.
Tare 4500 kg. (with rims) and tyres.
Rear hitch
PVC tank for water. Tank for inoculant.
Roll top canvas system
Plastic storage trunk box (front and rear)
A:Working width, without displacement: 4,000 mm
B: Maximum working distance with respect to the cart: from 2.700 to 6.500 mm
C: Maximum unloading height: 4.514 mm
UNLOADING POSITION

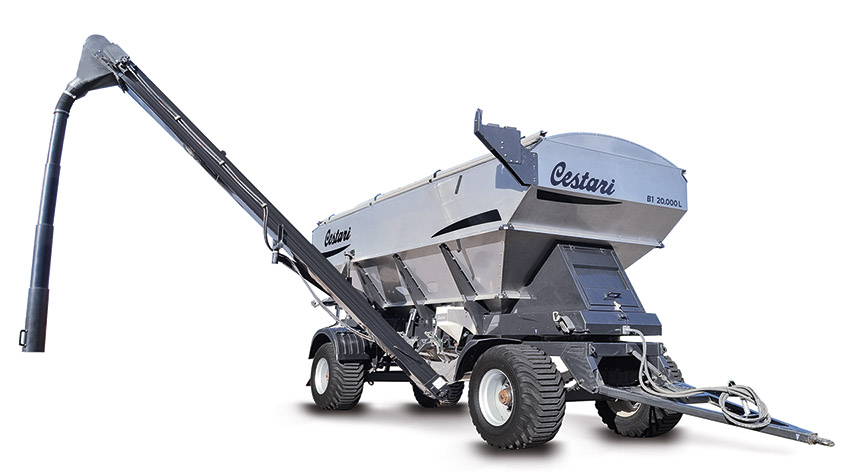

Unloading position (loading to seeder)

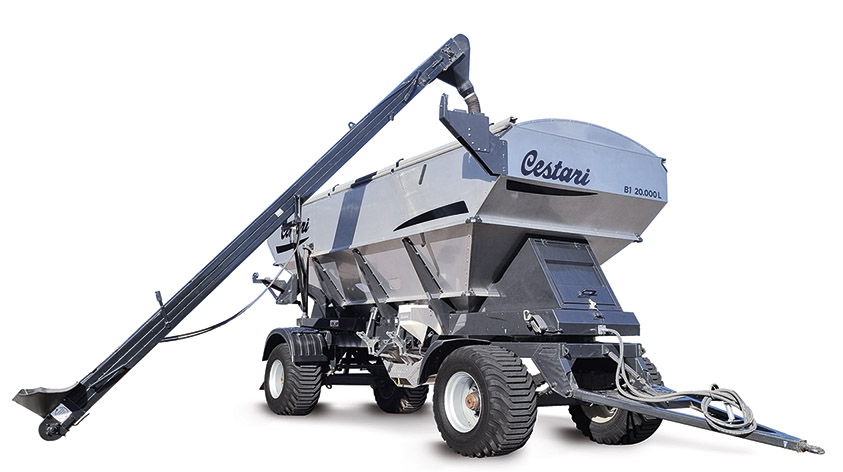

SELF-LOADING POSITION
-

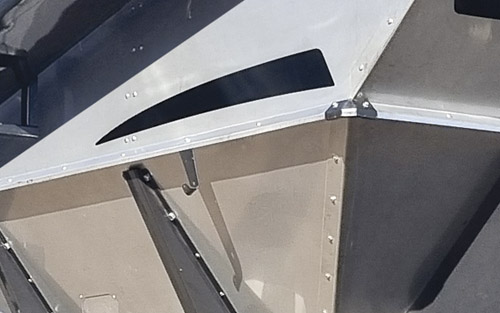

- Completely bolted structure.
-

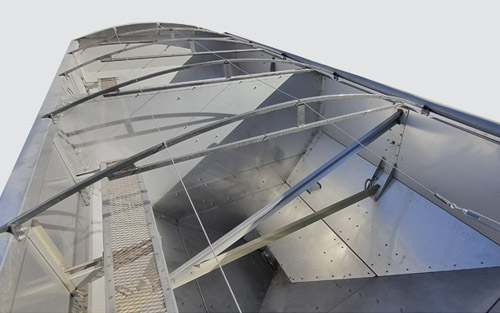

- Inner compartment for seeds and fertilizers loading. Internal footbridge.
-

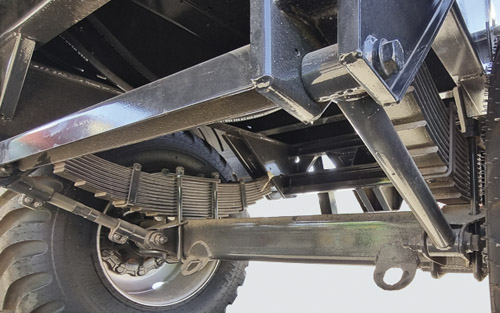

- Suspension system with leaf springs and tensors.
-

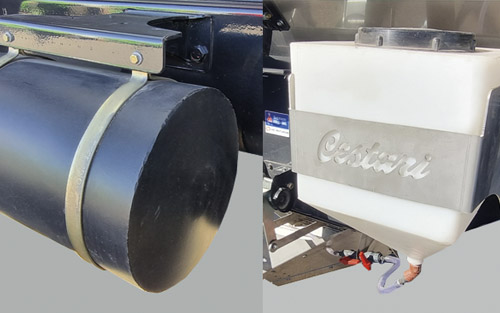

- Tank for inoculant.PVC tank for water (60 liters).
-

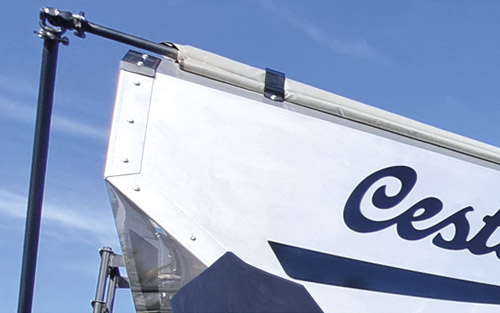

- Roll top canvas system.
-

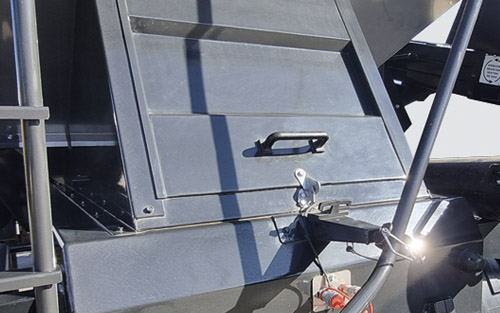

- Plastic storage trunk box (front and rear).
-
- Rear hitch. Rear connection – hydraulic and electrical.
-

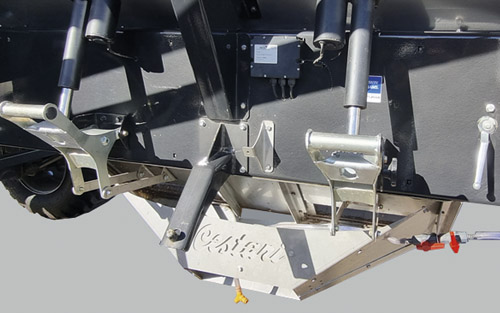

- Unloading nozzle with remote control opening. *
-
- Rubber conveyor belts. *
OPTIONAL
-Unloading nozzle with remote control opening.
-Rubber conveyor belts.
-Scales in spindle (without any height change).
(*) Optional – NEW!
Suitable: fertilizers and chemicals.
Low vibration level.
Low dead weight.
No damage to the material.
Higher productivity.
High speed load handling.
