B1 20.000 L Auger wagon for seeds and fertilizers.
Developed for loading and unloading seeds and fertilizers.
Dual axle
Capacity: 20.000 liters
Diameter of the Auger tube: 220 mm
High flotation tyres (600/50 – 22.5) or duals
Inner compartment for seeds and fertilizers loading
Suspension system with leaf springs and tensors for a better trafficability.
Tare 4500 kg. (with rims) and tyres.
Rear hitch
PVC tank for water. Tank for inoculant.
Roll top canvas system
Plastic storage trunk box (front and rear)
A: Working width, without displacement: 4,000 mm
B: Maximum working distance with respect to the cart: from 2.700 to 6.500 mm
C: Maximum unloading height: 4.514 mm
TUBE
The tube version of the hopper for seeds and fertilizers is an essential part of the trailer, designed to facilitate the efficient and safe handling of these materials in the loading and unloading process.
RIBBON (OPTIONAL) NEW!
The belt version of the seed and fertilizer hopper is a robust and effective alternative to the auger design, providing a reliable and safe means of transporting materials on the trailer.
-
- Completely bolted structure.
-

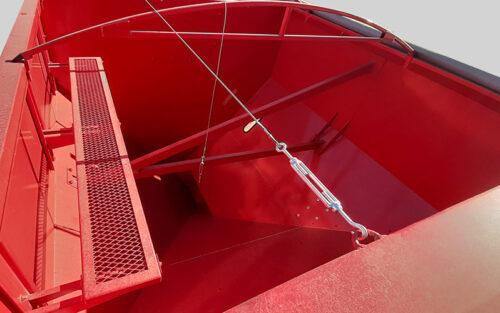

- Inner compartment for seeds and fertilizers loading.
-

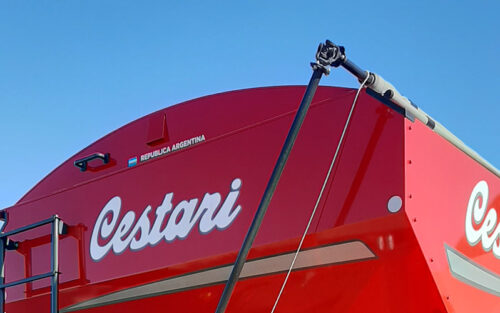

- Roll top canvas system.
-

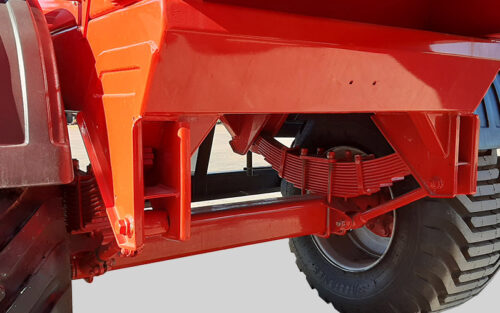

- Suspension system with leaf springs and tensors.
-

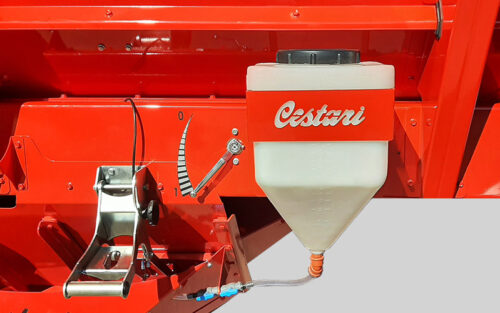

- Tank for inoculant. PVC tank for water (60 lts).
-

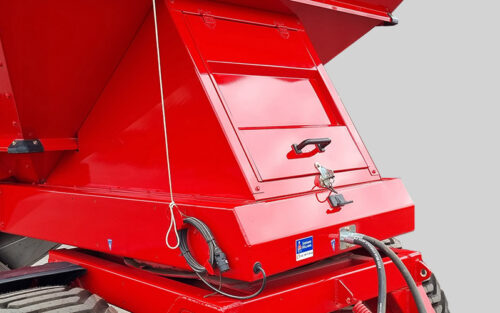

- Plastic storage trunk box (front and rear)
-
- Diameter of the Auger tube: 220 mm.
-

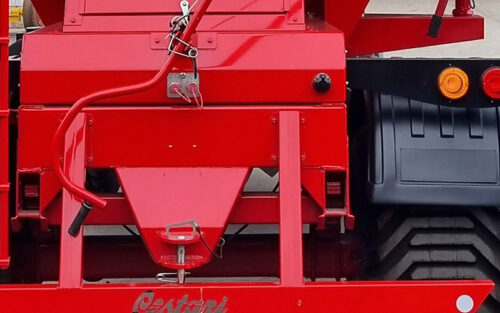

- Rear hitch. Rear connection – hydraulic and electrical .
OPTIONAL ACCESORIES
Loading and unloading system via conveyor belt. – NEW!
Electrical system for opening discharge nozzles. – NEW!
Stainless steel lower outlet cone. – NEW!
