Smaller units with rice as a reference
Line XXI includes different capacities for the traditional rice grain cart. 7,000, 9,000 and 10,000 litres are the sizes of this unit dedicated to the rice harvest. This line, with one axle, is equipped with hoses and hydraulic cylinder, tube lifting, cereal recovery tray and mechanical lifting jack. With the option of incorporating a hydraulic closing system with a unloading tube.
Weight Tare: 1400 kg.
Capacity: 9.000 Lts.
Máximum load: 7.500 Kg
Unloading time: 4 min. (*3)
Ø Tube: 280 mm.
Ø Tube: 304 mm.
Scale.
Roll top canvas system.
Hydraulic gate located in the lower tube for the cereal input.
Regular ground: 40 to 60 HP tractor.
Soft ground: 40 to 60 HP tractor.
-

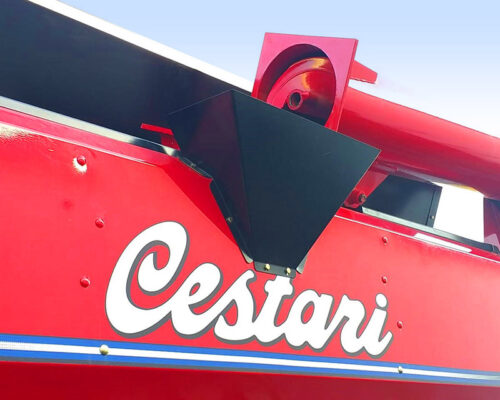

- Cereal recovering tray.
-

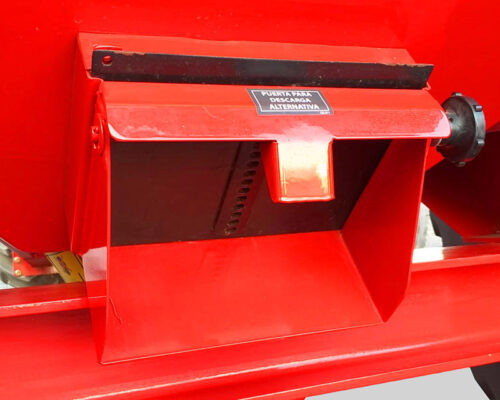

- Alternative unloading nozzle.
-

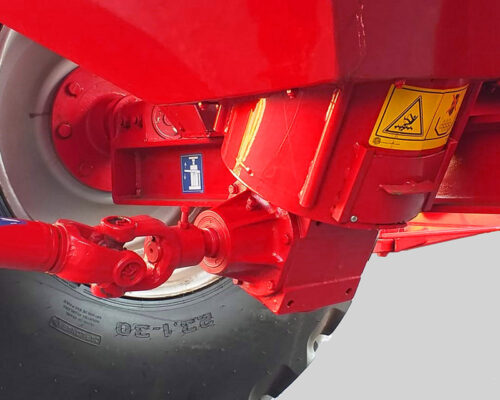

- Gearbox with forged steel gears (in oil bath).
-
- Axle with interchangeable spindle (bolted splindes); Forged steel hub wheels.
-

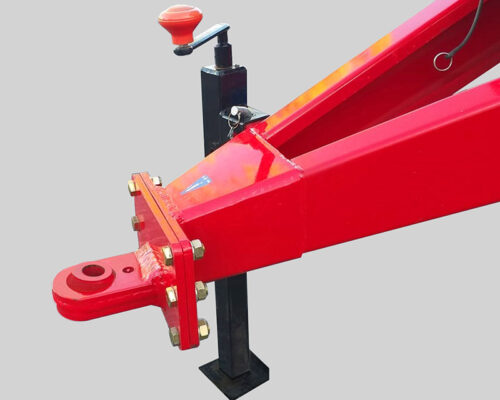

- Bolted front hitch with keecap and mechanical lifting Jack.
-

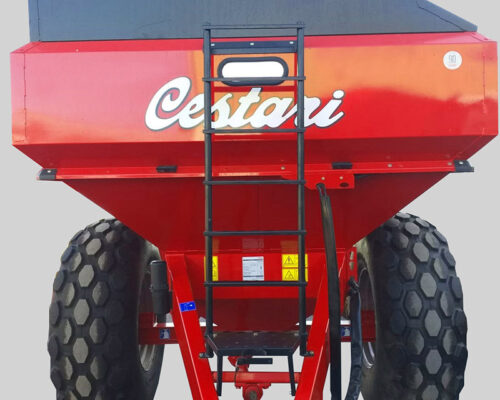

- Front ladder.
